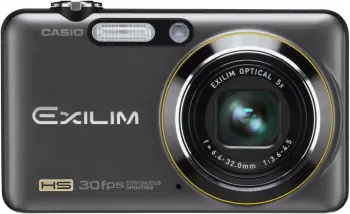

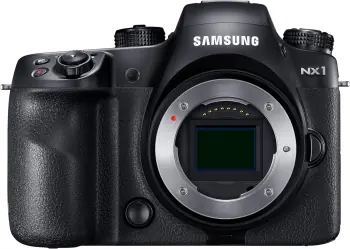

Samsung NX1 vs Casio Exilim EX-FC100

      78
      Image cannot be found
      53
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found

      Disclosure: We earn money from the affiliate links to products associated with content in this article.

      Specifications

      General Samsung NX1 Casio Exilim EX-FC100
      BrandSamsungCasio
      ModelNX1Exilim EX-FC100
      MSRP$1499 (body only), $2799 (with 16-50mm F2-2.8 lens, grip, extra battery, external charger)
      Camera TypeInterchangeable LensPoint & Shoot
      Body TypeMirrorlessStandard Compact
      Video Capture
      Sensor Samsung NX1 Casio Exilim EX-FC100
      Sensor TypeBSI-CMOSCMOS
      Sensor SizeAPS-C1/2.3-inch
      Sensor Dimensions23.5 x 15.7 mm6.17 x 4.55 mm
      Total Pixels30.7 Megapixel10 Megapixel
      Effective Pixels28.2 Megapixel9 Megapixel
      Low Pass Filter
      Native ISO Range100 - 25,600100 - 1,600
      Boosted ISO Range100 - 51,200
      Photo Samsung NX1 Casio Exilim EX-FC100
      ProcessorDRIMe 5
      Max Image Resolution6480 x 43203456 x 2592
      Other Resolutions6480 x 3648, 4320 x 4320, 4560 x 3040, 4605 x 2592, 3088 x 3088, 3264 x 2176, 3328 x 1872, 2160 x 2160, 2112 x 1408, 2048 x 1152, 1408 x 14083456 x 2304, 3456 x 1944, 2816 x 2112, 2304 x 1728, 1600 x 1200, 640 x 480
      Image Aspect Ratios1:1, 3:2, 16:94:3, 3:2, 16:9
      Image File FormatJPEG
      JPEG Quality LevelsSuper fine, fine, normal
      Bit Depth14-Bit
      Color SpacesRGB
      Timelapse Recording
      White BalanceAuto WB, Daylight, Overcast, Shade, Day White Fluorescent, Daylight Fluorescent, Tungsten, Manual WB
      WB Bracketing
      Focus Samsung NX1 Casio Exilim EX-FC100
      Autofocus ModesMulti-area
      Center
      Selective single-point
      Tracking
      Single
      Continuous
      Touch
      Face Detection
      Live View      		Single
      Live View
      Lens ServoAutomatic, Continuous-Servo AF, Manual Focus, Single-Servo AF
      Number of Focus Points209
      Number of Cross-type Focus Points153
      Touch-to-Focus
      Live View Autofocus
      Animal Eye Detection
      Vehicle Tracking Mode
      Insect Tracking Mode
      Contrast Detection for Autofocus
      Phase Detection for Autofocus
      Optics Samsung NX1 Casio Exilim EX-FC100
      Lens MountSamsung NX
      Crop Factor1.5x
      Maximum Aperturef/3.6 - 8.5
      Image Stabilization
      Digital Image Stabilization
      Screen Samsung NX1 Casio Exilim EX-FC100
      Screen TypeTiltingFixed
      Screen TechnologySuper AMOLED
      Touch Screen
      Screen Size3.0"2.70"
      Screen Resolution1,036k dot230k dot
      Top LCD Screen
      Live View
      Live Composition
      Viewfinder Samsung NX1 Casio Exilim EX-FC100
      ViewfinderElectronic
      Viewfinder Coverage100%
      Viewfinder Magnification1.04x
      Viewfinder Magnification (35mm equivalent)0.69x
      Viewfinder Resolution2,360k dot
      Viewfinder Eyepoint21 mm
      Diopter Adjustment-4 to +2
      Shutter Samsung NX1 Casio Exilim EX-FC100
      Min Shutter Speed30 sec1 sec
      Max Shutter Speed (Mechanical or 1st Curtain)1/8000 sec1/1000 sec
      Max Continuous Shooting15.0 fps
      Flash Samsung NX1 Casio Exilim EX-FC100
      Built-in Flash
      Flash Range11.00 m at ISO 100
      External Flash Connectivity
      External Flash ConnectionHot Shoe
      Exposure Samsung NX1 Casio Exilim EX-FC100
      Exposure Metering ModesMulti
      Center-weighted
      Spot      		Multi
      Center-weighted
      Spot
      Exposure ModesProgram AE, Best Shot Scene Modes, Exposure Compensation (±2EV in 1/3EV Steps)
      Exposure Compensation±5 EV (1/3 EV increments)±2 (at 1/3 EV increments)
      Exposure Bracketing ±3 EV (at 1 EV increments)
      DXO Samsung NX1 Casio Exilim EX-FC100
      DxO Low Light ISO1363
      DxO Color Depth24.2
      DxO Dynamic Range13.2
      DxO Overall Score83
      Video Samsung NX1 Casio Exilim EX-FC100
      Interval Recording
      Video FormatsH.265Motion JPEG
      Max Video Resolution4096 x 21601280 x 720
      Unlimited Video Recording
      Recording Limit30 min
      Terminals Samsung NX1 Casio Exilim EX-FC100
      USB SpeedUSB 3.2 Gen 1x1 (5 GBit/sec)USB 2.0 (480 Mbit/sec)
      HDMI Output Micro
      SpeakerMonoMono
      Built-in MicrophoneStereoStereo
      Microphone Input
      Headphone Output
      Flash Sync Port
      Connectivity Samsung NX1 Casio Exilim EX-FC100
      Built-in GPS
      Built-In Wi-Fi Eye-Fi Connection possible
      Wi-Fi VersionWi-Fi 5, 802.11ac/b/g/n, 2.4/5 GHz
      Built-In Bluetooth
      NFC
      Remote Control wired or via smartphone
      Environmental Samsung NX1 Casio Exilim EX-FC100
      Environmental Sealing
      Physical Samsung NX1 Casio Exilim EX-FC100
      Dimensions139 x 102 x 66 mm (5.47 x 4.02 x 2.6")100 x 59 x 23 mm (3.94 x 2.32 x 0.91")
      Weight (inc. batteries)550 g (1.21 lb / 19.40 oz)156 g (0.34 lb / 5.50 oz)
      Box Dimensions (LxWxH)8.1 x 6.8 x 4.2"
      Package Weight2.9 lb
      Power and Storage Samsung NX1 Casio Exilim EX-FC100
      Battery PackBP1900NP-40
      Battery Life500 shots
      Internal Storage
      External StorageSingle Slot: SD/SDHC/SDXC (UHS-II)Single Slot: SDHC Memory Card/SD Memory Card/Eye-Fi Wireless Card compatible
      Other Samsung NX1 Casio Exilim EX-FC100
      Self Timer 2 - 30 secsYes (10 seconds, 2 seconds, Triple Self-timer)
      Orientation Sensor
