Onkyo TX-NR515 vs Onkyo TX-NR5010

      Onkyo TX-NR515

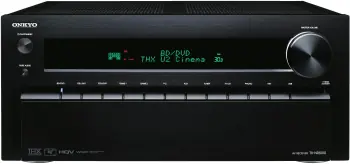

      Onkyo TX-NR5010
      71
      Image cannot be found
      84
      Image cannot be found
      USA Taiwan
      Europe and Australia
      Others
      USA
      Europe
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found


      Highlights

      • 7.2 Channels
      • 7.1 Channel Processing
      • 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      • 4K/30Hz Upscaling
      • Ethernet

      Highlights

      • 9.2 Channels
      • 11.1 Channel Processing
      • 145 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      • THX™Ultra2 Plus Certified
      • 4K/30Hz Upscaling
      • Bluetooth, Ethernet
      • Phono Input

      Disclosure: We earn money from the affiliate links to products associated with content in this article.

      Table of Contents
      1. Overview
      2. Pros and Cons
      3. Advantage of Onkyo TX-NR5010
      4. Common Strengths and Weaknesses
      5. Amplifier
      6. Speaker Configurations
      7. Immersive Audio Formats
      8. HDMI
      9. Inputs and Outputs
      10. Evaluations
      11. Specifications

      1. Overview

      Here we are comparing Onkyo TX-NR515 to Onkyo TX-NR5010 to reveal their common strengths and weaknesses as well as the differences between them which will help you in making a correct decision before the purchase. The Onkyo TX-NR515 has 7 channel and the Onkyo TX-NR5010 has 9 channel amplifiers with Onkyo TX-NR515's being less powerful.


      Onkyo TX-NR515 Onkyo TX-NR5010

      Onkyo TX-NR515 was introduced in 2012. It is equipped with 7 channel amplifier with 80 W (8 Ω, 20 Hz - 20 kHz and 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It , passes 1080/60p and upscales up to 4K/30p (Marvell Qdeo) video signal.

      Onkyo TX-NR5010 was introduced in 2012 and represented a flagship model of a manufacturer. It is equipped with 9 channel amplifier with 145 W (8 Ω, 20 Hz - 20 kHz and 2 channel driven) power per channel and is capable of 11.1 maximum channel processing. It , passes 1080/60p and upscales up to 4K/30p (Marvell Qdeo) video signal.

      We evaluated Onkyo TX-NR515 and Onkyo TX-NR5010 and gave them scores of 71 and 84 out of 100 recpectively. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

      Onkyo TX-NR515

      Onkyo TX-NR5010

      Amplifier
      75
      Amplifier
      98
      Audio Features
      70
      Audio Features
      82
      Video Features
      58
      Video Features
      60
      Connectivity
      76
      Connectivity
      87
      Zones
      77
      Zones
      91
      Radio
      88
      Radio
      88
      OVERALL
      71
      OVERALL
      84

      For more details about the ranking please go to    Evaluations section.

      2. Pros and Cons

      In this section we present pros and cons of Onkyo TX-NR515 and Onkyo TX-NR5010.

      PROS

      Onkyo TX-NR515

      Onkyo TX-NR5010

      •   DSD via HDMI
      •   Auto Speaker Calibration System with Mic.
      •   New HDCP Version
      •   Analog To HDMI Upconversion
      •   8 HDMI Inputs
      •   USB Input
      •   Composite Video Inputs
      •   Component Video Inputs
      •   Ethernet
      •   Analog Tuner
      •   Pandora
      •   Spotify
      •   High Power Output - 145 W
      •   Front Wide Channel Support
      •   THX™ Certification
      •   11.1 Channel Processing
      •   DSD via HDMI
      •   Auto Speaker Calibration System with Mic.
      •   New HDCP Version
      •   Analog To HDMI Upconversion
      •   Bluetooth
      •   9 HDMI Inputs
      •   USB Input
      •   Many RCA Line Inputs
      •   Phono Input
      •   RCA Pre-Outs
      •   Composite Video Inputs
      •   Component Video Inputs
      •   Ethernet
      •   3 Zones
      •   Analog Tuner
      •   Pandora
      •   Spotify
      •   Independent Power Supply
      •   Toroidal Transformer

      CONS

      Onkyo TX-NR515

      Onkyo TX-NR5010

      •   Low Power Output - 80 W
      •   No Front Wide Channel Support
      •   No Dolby Atmos
      •   No Dolby Atmos Height Virtualization
      •   No DTS:X
      •   No IMAX Enhanced
      •   No Auro 3D with Auro-Matic Upmixer
      •   No HDR10
      •   No HDR10+
      •   No Dolby Vision
      •   No eARC
      •   No 8K Passthrough
      •   No Bluetooth
      •   Does not Work with Amazon Alexa
      •   0 8K Input
      •   No Phono Input
      •   No RCA Pre-Outs
      •   No Digital Radio
      •   No Tidal
      •   No Dolby Atmos
      •   No Dolby Atmos Height Virtualization
      •   No DTS:X
      •   No IMAX Enhanced
      •   No Auro 3D with Auro-Matic Upmixer
      •   No HDR10
      •   No HDR10+
      •   No Dolby Vision
      •   No eARC
      •   No 8K Passthrough
      •   Does not Work with Amazon Alexa
      •   0 8K Input
      •   No Digital Radio
      •   No Tidal


      And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

      AVERAGE

      Onkyo TX-NR515

      Onkyo TX-NR5010

      •   7.2 Channels
      •   7.1 Channel Processing
      •   Wi-Fi
      •   2 HDMI Outputs
      •   RCA Line Inputs
      •   2 Zones
      •   9.2 Channels
      •   Wi-Fi
      •   3 HDMI Outputs

      3. Advantage of Onkyo TX-NR5010

      This section shows those features and specifications which are the reason to choose Onkyo TX-NR5010 over Onkyo TX-NR515.

      Check the Price

      Onkyo TX-NR5010
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Onkyo TX-NR515 vs Onkyo TX-NR5010
      More Channels 7.2 vs 9.2
      Higher Power Output 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) vs 145 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support vs
      VLSC (Vector Linear Shaping Circuitry) vs All Channels
      THX™ Certification vs Ultra2 Plus
      Certified 4 Ω Performance vs
      3-Stage Inverted Darlington Circuitry vs
      PUSH-PULL Design vs
      Independent Block Construction (Amp/Preprocessor) vs
      Digital Processing Crossover Network vs
      Higher DAC Specs 192 kHz/24 Bit vs 192 kHz/32 Bit
      More Channel Processing 7.1 vs 11.1
      Surround EX vs also known as Dolby Digital Surround EX
      DTS Neo Neo:6 vs Neo:X
      Music Playback via USB FLAC, WAV, WMA, WMA Lossless, Ogg, MP3, LPCM, AAC vs FLAC, WAV, Apple Lossless, WMA, WMA Lossless, Ogg, MP3, DSD, Dolby TruHD, LPCM, AAC
      High Resolution Audio Formats via USB FLAC, WAV, WMA Lossless, LPCM, AAC vs FLAC, WAV, Apple Lossless, DSD, WMA Lossless, LPCM, AAC, Dolby TrueHD
      DSD via USB vs 2-ch Input
      Dialog Normalization vs
      Dialogue Lift vs Screen Centered Dialog
      More Tone Control Channels Front L/R Channels vs All Channels
      THX Processing Mode vs
      Audyssey DSX vs
      More Advanced Auto Speaker Calibration System Audyssey 2EQ vs Audyssey MultEQ XT32
      Component Video Upscaling vs *
      Analog to Analog Video conversion vs Composite, PC
      isf Certified Calibration Control vs
      Bluetooth vs via Front USB (optional UBT-1 adapter sold separately)
      More HDMI Inputs 8 (1 front) vs 9 (1 front)
      More HDMI Outputs 2 (simultaneous) vs 2 (1 Main, 1 Sub/Zone2)
      More Optical Inputs 2 vs 4 (1 front)
      More Coaxial Inputs/Outputs 2 vs 3
      More RCA Line Inputs 5 vs 7 (1 front)
      Phono Input vs
      More RCA Pre-Outs 0.2 vs 11.4
      More Component Video Inputs 1 vs 2
      PC In vs
      Front A/V Inputs HDMI/MHL, USB, Composite Video vs HDMI/MHL, USB, Composite Video, RCA Audio, Optical
      Detachable Power Cord vs
      More Zones 2 vs 3
      More Powered Zones 2 vs 2 and 3
      Zone 2 Outs RCA Line Out vs HDMI, Composite Video, RCA Line Out
      Whole House Mode vs
      RS-232C Interface vs
      +12V Trigger Output vs 2 (Zone2, Zone 3)
      Remote (IR) Input/Output vs 1 / 1
      Pre-Pro/Learning Remote / vs /
      Bi-directional Remote Setup via GUI vs
      Activity Based Remote vs
      More Speaker Terminals 9 vs 11
      More Large Speaker Terminals 7 vs 11
      Transparent High-Grade Speaker Terminals vs
      Independent Power Supply vs 4
      Toroidal Transformer vs
      Bigger Power Supply 480 W vs 1160 W
      Higher Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC) 80 W (0.7% THD) vs 145 W (0.05% THD)
      Higher Power Output (6 Ω, 1 kHz, 2 channel driven, FTC) 125 W (0.1% THD) vs 175 W (0.1% THD)
      Higher Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA) 160 W vs 280 W
      Higher Power Output (6 Ω, 1 kHz, 1 channel driven, IEC) 130 W (1% THD) vs 220 W (1% THD)
      Higher Dynamic Power per Channel, 3 Ω, Front) 180 W vs 400 W
      Higher Dynamic Power per Channel, 4 Ω, Front) 160 W vs 300 W
      Higher Dynamic Power per Channel, 8 Ω, Front) 100 W vs 180 W
      Lower THD 0.08% (20 Hz - 20 kHz, half power) vs 0.05% (20 Hz - 20 kHz, half power)
      Higher S/N Ratio (Line, IHF-A) 100 dB vs 110 dB

      4. Common Strengths and Weaknesses

      We already listed pros and cons of each model. However, you may also find useful to look at their common strengths and weaknesses shown side-by-side.

      STRENGTHS Onkyo TX-NR515 Onkyo TX-NR5010
        DSD via HDMI 2-ch/Multi-ch Input 2-ch/Multi-ch Input
        Auto Speaker Calibration System with Mic. Audyssey 2EQ Audyssey MultEQ XT32
        New HDCP Version2.22.2
        Analog To HDMI Upconversion Component**, Composite Component, Composite, PC
        Many HDMI Inputs8 (1 front)9 (1 front)
        USB Input1 Front (for iPod/iPhone) and 1 Rear1 Front (for iPod/iPhone) and 1 Rear
        Composite Video Inputs5 (1 front)5 (1 front)
        Component Video Inputs12
        Ethernet
        Analog Tuner FM/AM with RDS FM/AM with RDS
        Pandora
        Spotify
      WEAKNESSES Onkyo TX-NR515 Onkyo TX-NR5010
        No Dolby Atmos
        No Dolby Atmos Height Virtualization
        No DTS:X
        No IMAX Enhanced
        No Auro 3D with Auro-Matic Upmixer
        No HDR10
        No HDR10+
        No Dolby Vision
        No eARC
        No 8K Passthroughup to 1080pup to 1080p
        Does not Work with Amazon Alexa
        Few 8K Inputs
        No Digital Radio
        No Tidal

      5. Amplifier

      Onkyo TX-NR515 Onkyo TX-NR5010

      7 channel Amplifier: Onkyo TX-NR515 features 7 channel power amplifier. It is rated at 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven).

      9 channel Amplifier: Onkyo TX-NR5010 features 9 channel power amplifier. It is rated at 145 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.
      • WRAT (Wide Range Amp Technology): Onkyo TX-NR515 and Onkyo TX-NR5010 feature Onkyo’s Wide Range Amp Technology (WRAT) circuit layout that prevents phase shifting by pushing the roll-off point higher than the listening-level frequency. Amplifying sound without phase shift creates an uncommonly well-focused and realistic audio image. If phase shift occurs and signal timing is not accurate, then neither is the resulting audio image.
      • 3-Stage Inverted Darlington Circuitry: Onkyo TX-NR5010 features 3-Stage Inverted Darlington Circuitry. Standard amplifiers employ a negative feedback (NFB) design that counters distortion by feeding back the opposite phase of the output signal into the input stage. Unfortunately, NFB is easily affected by inverse electromotive forces from the speakers, leading to an increase in circuit noise. Three-Stage Inverted Darlington Circuitry is a core Onkyo technology incorporating a low-NFB design that makes the sound more natural. Sensitive to oscillations, this circuitry requires very advanced control technology in order to be incorporated into the amplifier.
      • Toroidal Transformer: Onkyo TX-NR5010 has a toroidal transformer which in general costs several times more than a regular C-core transformer and radiates less electromagnetic noise outside its donut shaped core.

      THX™ Ultra2 Plus certification

      Onkyo TX-NR5010 is THX™ Ultra2 Plus certified. This means that it brings the cinematic experience to large home theaters, 3,000 cubic feet (85 cubic meters) in size, with a viewing distance of 12 feet (4 meters) or greater from the screen.



      AMPLIFIER Onkyo TX-NR515 Onkyo TX-NR5010
      Channels7.29.2
      Power Output80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)145 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support
      WRAT (Wide Range Amplifier Technology)
      VLSC (Vector Linear Shaping Circuitry) All Channels
      Optimum Gain Volume Circuitry Linear
      THX™ Certification Ultra2 Plus
      Continuous 6 Ω Rated
      Certified 4 Ω Performance
      Discrete Output Stage Circuitry
      3-Stage Inverted Darlington Circuitry
      PUSH-PULL Design
      Independent Block Construction (Amp/Preprocessor)
      Bi-amp Capability
      BTL (Bridged Transless or Bridging)

      Check the Price

      Onkyo TX-NR515
      Image cannot be found
      Image cannot be found
      Image cannot be found

      6. Speaker Configurations

      Onkyo TX-NR515's and Onkyo TX-NR5010's amplifiers can be assigned for different speaker configurations.

      • Configurations: Available configurations are:
      • Onkyo TX-NR515: 5.2, 7.2 with internal amplifier.
      • Onkyo TX-NR5010: 5.2, 7.2, 9.2 with internal amplifier.
      • Front Wide Channel support: With the presence of two front wide speakers you can enhance the front surround stage. The following speaker configurations are available for front wide channels:
      • Onkyo TX-NR515: Does not support.
      • Onkyo TX-NR5010: 9.2.
      • 2-ch Bi-Amp: Both models are able to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

      7. Immersive Audio Formats

      Audyssey DSX

      Onkyo TX-NR5010 supports Audyssey DSX which allows you to augment a standard five-channel home theater with either two Front Wide or two Front High speakers. The Wide channels create an expansive soundstage and bring out convincing directional effects. Alternatively, Height channels can add a vertical dimension to movie and game soundtracks.


      AUDIO DECODING Onkyo TX-NR515 Onkyo TX-NR5010
      Dolby Atmos
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic PLIIz PLIIz
      Dolby Digital EX
      Surround EX also known as Dolby Digital Surround EX
      DTS:X
      DTS Neural:X
      DTS Virtual:X
      DTS Neo Neo:6 Neo:X
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      DTS Express
      DTS-ES Discrete 6.1, Matrix 6.1 Discrete 6.1, Matrix 6.1
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer

      Check the Price

      Onkyo TX-NR5010
      Image cannot be found
      Image cannot be found
      Image cannot be found

      8. HDMI

      Onkyo TX-NR515 comes with 8 HDMI inputs. It has 2 outputs which work parallelly and output the same signal.

      Onkyo TX-NR5010 comes with 9 HDMI inputs. It has 2 outputs - 1 Main and 1 Sub/Zone2.

      • 1080/60p Passthrough: On both receivers all inputs pass up to 1080p video signal.
      • 4K Upscaling: Both receivers can upscale up to 4K/30p (Marvell Qdeo) from HDMI and analog sources.
      • Analog To HDMI Upconversion: Both receivers support analog to HDMI Upconversion, so you can input your analog video sources and output them digitally via HDMI. This means that you will need only one HDMI cable to connect to your TV.
      • HDCP 2.2 Copy Protection: Both receivers are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
      • 3D Ready: Both receivers are able to pass 3D video through HDMI.


      VIDEO FEATURES Onkyo TX-NR515 Onkyo TX-NR5010
      HDR10
      HDR10+
      Dynamic HDR
      BT.2020 color space
      Dolby Vision
      HLG (Hybrid Log Gamma)
      HDBaseT Compatible
      Enhanced Audio Return Channel (eARC)
      HDCP Version2.22.2
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      3-D Ready
      Video Signal Passthroughup to 1080pup to 1080p
      Video Signal Upscaling up to 4K/30p (Marvell Qdeo) up to 4K/30p (Marvell Qdeo)

      Check the Price

      Onkyo TX-NR515
      Image cannot be found
      Image cannot be found
      Image cannot be found

      9. Inputs and Outputs

      Audio

      • Phono Input: There is an MM phono input on Onkyo TX-NR5010 with built-in phono stage for connecting the moving magnet cartridge output of the turntable directly to the receiver.
      • Analog Pre-Outs: Onkyo TX-NR5010 has 11.4 preamplifier outputs which allows you to connect the receiver to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the receiver to power the rest. Also, Onkyo TX-NR5010 has 11 channel processing but has only 7 channel amplifier, so it needs external amplifier connected to the analog pre-outs in order to reach its maximum speaker configuration.
      • Analog Line Inputs: There are 5 pair of line inputs on Onkyo TX-NR515 and 7 pair of line inputs on Onkyo TX-NR5010 for connecting sources with analog outputs.
      • Digital Inputs: 2 optical inputs and 2 coaxial inputs are available on Onkyo TX-NR515 and 4 optical inputs and 3 coaxial inputs are available on Onkyo TX-NR5010 for digital audio connections.
      • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel of each receiver.

      Video

      • HDMI:
      • Onkyo TX-NR515
        Inputs:         8 (1 front)   Outputs: 2 (simultaneous)
        8K Inputs: 0.
      • Onkyo TX-NR5010
        Inputs:         9 (1 front)   Outputs: 2 (1 Main, 1 Sub/Zone2)
        8K Inputs: 0.
      • Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
      • Onkyo TX-NR515
        Inputs:         5   Outputs: 1.
      • Onkyo TX-NR5010
        Inputs:         5   Outputs: 1.
      • Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one. Both receivers support up to 1080p resolution on Component video connectors.
      • Onkyo TX-NR515
        Inputs:         1   Outputs: 1.
      • Onkyo TX-NR5010
        Inputs:         2   Outputs: 1.

      Front A/V Inputs

      • Onkyo TX-NR515: HDMI/MHL, USB, Composite Video
      • Onkyo TX-NR5010: HDMI/MHL, USB, Composite Video, RCA Audio, Optical

      Onkyo TX-NR515

      Image cannot be found Image cannot be found

      Onkyo TX-NR5010

      Image cannot be found Image cannot be found
      TERMINALS Onkyo TX-NR515 Onkyo TX-NR5010
      HDMI Inputs8 (1 front)9 (1 front)
      HDMI Outputs2 (simultaneous)2 (1 Main, 1 Sub/Zone2)
      8K Inputs
      USB Input1 Front (for iPod/iPhone) and 1 Rear1 Front (for iPod/iPhone) and 1 Rear
      USB DC Out Port
      Optical Inputs24 (1 front)
      Optical Outputs
      Coaxial Inputs23
      RCA Line Inputs57 (1 front)
      RCA Line Outputs
      XLR Line Inputs
      Phono Input
      Multi-Channel Input
      RCA Pre-Outs0.211.4
      XLR Pre-outs
      Composite Video Inputs5 (1 front)5 (1 front)
      Composite Video Outputs11
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs12
      Component Video Outputs11

      Check the Price

      Onkyo TX-NR5010
      Image cannot be found
      Image cannot be found
      Image cannot be found

      10. Evaluations

      We evaluated Onkyo TX-NR515 and Onkyo TX-NR5010 and gave them scores of 71 and 84 out of 100 recpectively. We also gave separate scores for 7 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


      Onkyo TX-NR515

      Onkyo TX-NR5010

      OVERALL
      71
      OVERALL
      84

      Amplifier

      GOOD
      75
      •   7.2 Channels
      •   Low Power Output - 80 W
      EXCELLENT
      98
      •   9.2 Channels
      •   High Power Output - 145 W
      •   THX™ Certification
      •   Independent Power Supply
      •   Toroidal Transformer

      Audio Features

      GOOD
      70
      •   7.2 Channels
      •   No Front Wide Channel Support
      •   7.1 Channel Processing
      •   No Dolby Atmos
      •   No Dolby Atmos Height Virtualization
      •   No DTS:X
      •   No IMAX Enhanced
      •   No Auro 3D with Auro-Matic Upmixer
      •   DSD via HDMI
      GOOD
      82
      •   9.2 Channels
      •   Front Wide Channel Support
      •   11.1 Channel Processing
      •   No Dolby Atmos
      •   No Dolby Atmos Height Virtualization
      •   No DTS:X
      •   No IMAX Enhanced
      •   No Auro 3D with Auro-Matic Upmixer
      •   DSD via HDMI

      Video Features

      AVERAGE
      58
      •   No HDR10
      •   No HDR10+
      •   No Dolby Vision
      •   No 8K Passthrough
      •   Analog To HDMI Upconversion
      AVERAGE
      60
      •   No HDR10
      •   No HDR10+
      •   No Dolby Vision
      •   No 8K Passthrough
      •   Analog To HDMI Upconversion

      Connectivity

      GOOD
      76
      •   No eARC
      •   New HDCP Version
      •   Wi-Fi
      •   No Bluetooth
      •   Does not Work with Amazon Alexa
      •   8 HDMI Inputs
      •   2 HDMI Outputs
      •   0 8K Input
      •   USB Input
      •   RCA Line Inputs
      •   No Phono Input
      •   No RCA Pre-Outs
      •   Composite Video Inputs
      •   Component Video Inputs
      •   Ethernet
      EXCELLENT
      87
      •   No eARC
      •   New HDCP Version
      •   Wi-Fi
      •   Bluetooth
      •   Does not Work with Amazon Alexa
      •   9 HDMI Inputs
      •   3 HDMI Outputs
      •   0 8K Input
      •   USB Input
      •   Many RCA Line Inputs
      •   Phono Input
      •   RCA Pre-Outs
      •   Composite Video Inputs
      •   Component Video Inputs
      •   Ethernet

      Zones

      GOOD
      77
      •   2 Zones
      EXCELLENT
      91
      •   3 Zones

      Radio

      EXCELLENT
      88
      •   Analog Tuner
      •   Pandora
      •   Spotify
      •   No Tidal
      EXCELLENT
      88
      •   Analog Tuner
      •   Pandora
      •   Spotify
      •   No Tidal

      11. Specifications

      GENERAL Onkyo TX-NR515 Onkyo TX-NR5010
      BrandOnkyoOnkyo
      ModelTX-NR515TX-NR5010
      TypeA/V ReceiverA/V Receiver
      CountryEurope and AustraliaEurope
      Release Year20122012
      PredecessorOnkyo TX-NR509 Onkyo TX-NR5009
      SuccessorOnkyo TX-NR525
      AMPLIFIER Onkyo TX-NR515 Onkyo TX-NR5010
      Channels7.29.2
      Power Output80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)145 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support
      WRAT (Wide Range Amplifier Technology)
      VLSC (Vector Linear Shaping Circuitry) All Channels
      Optimum Gain Volume Circuitry Linear
      THX™ Certification Ultra2 Plus
      Continuous 6 Ω Rated
      Certified 4 Ω Performance
      Discrete Output Stage Circuitry
      3-Stage Inverted Darlington Circuitry
      PUSH-PULL Design
      Independent Block Construction (Amp/Preprocessor)
      Bi-amp Capability
      BTL (Bridged Transless or Bridging)
      AUDIO FEATURES Onkyo TX-NR515 Onkyo TX-NR5010
      Digital Processing Crossover Network
      Digital Signal Processing (DSP) EngineAdvanced 32-Bit Processing DSP ChipAdvanced 32-Bit Processing DSP Chip
      DACBurr-BrownBurr-Brown
      DAC Specs192 kHz/24 Bit192 kHz/32 Bit
      Maximum Channel Processing7.111.1
      Air Studios Monitor Certification
      Dolby Atmos
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic PLIIz PLIIz
      Dolby Digital EX
      Surround EX also known as Dolby Digital Surround EX
      DTS:X
      DTS Neural:X
      DTS Virtual:X
      DTS Neo Neo:6 Neo:X
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      DTS Express
      DTS-ES Discrete 6.1, Matrix 6.1 Discrete 6.1, Matrix 6.1
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer
      PCM 2-ch/Multi-ch Input 2-ch/Multi-ch Input
      Music Playback via USBFLAC, WAV, WMA, WMA Lossless, Ogg, MP3, LPCM, AACFLAC, WAV, Apple Lossless, WMA, WMA Lossless, Ogg, MP3, DSD, Dolby TruHD, LPCM, AAC
      High Resolution Music Playback via USB and/or Network up to 192 kHz up to 192 kHz
      High Resolution Audio Formats via USBFLAC, WAV, WMA Lossless, LPCM, AACFLAC, WAV, Apple Lossless, DSD, WMA Lossless, LPCM, AAC, Dolby TrueHD
      Gapless Playback
      DSD via HDMI 2-ch/Multi-ch Input 2-ch/Multi-ch Input
      DSD via USB 2-ch Input
      DSD to PCM Converter
      USB DAC
      Jitter Reduction PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology
      DTS Dialogue Control
      Dialog Enhancement
      Dialog Level Adjustment
      Dialog normalization
      Dialogue Lift Screen Centered Dialog
      Tone Control Front L/R Channels All Channels
      Compressed Music Enhancer Advanced Music Optimizer Advanced Music Optimizer
      High-resolution Music Enhancer
      THX Processing Mode
      Audyssey Dynamic EQ
      Audyssey Dynamic Volume
      Audyssey LFC
      Audyssey Sub EQ HT
      Audyssey DSX
      Phase-Matching Bass Boost
      Direct Mode
      Pure Audio Mode
      Pure Direct Analog Path Mode
      Virtual Speakers T-D (Theater-Dimensional) T-D (Theater-Dimensional)
      Independent Subwoofer Outputs
      CALIBRATION Onkyo TX-NR515 Onkyo TX-NR5010
      Auto Speaker Calibration System with Mic. Audyssey 2EQ Audyssey MultEQ XT32
      Audyssey App Support
      VIDEO FEATURES Onkyo TX-NR515 Onkyo TX-NR5010
      HDR10
      HDR10+
      Dynamic HDR
      BT.2020 color space
      Dolby Vision
      HLG (Hybrid Log Gamma)
      HDBaseT Compatible
      Enhanced Audio Return Channel (eARC)
      HDCP Version2.22.2
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      3-D Ready
      Video Signal Passthroughup to 1080pup to 1080p
      Video Signal Upscaling up to 4K/30p (Marvell Qdeo) up to 4K/30p (Marvell Qdeo)
      Analog To HDMI Upconversion Component**, Composite Component, Composite, PC
      Component Video Upscaling *
      Analog to Analog Video conversion Composite, PC
      Component Video Maximum Resolution1080p1080p
      isf Certified Calibration Control
      CONNECTIVITY Onkyo TX-NR515 Onkyo TX-NR5010
      Wi-Fi via Front USB (optional UWF-1 sold separately) via Front USB (optional UWF-1 sold separately)
      Bluetooth via Front USB (optional UBT-1 adapter sold separately)
      Works with Amazon Alexa
      Chromecast Built-In
      Works with SonoS
      DTS Play-Fi
      MHL Input Front HDMI Front HDMI
      DLNA 1.5
      AirPlay
      Apple Product Connection iPod and iPhone via front USB iPod and iPhone via front USB
      Remote App iPod touch/iPhone and Android-Powered Devices iPod touch/iPhone and Android-Powered Devices
      InstaPrevue Input Source Prevue
      TERMINALS Onkyo TX-NR515 Onkyo TX-NR5010
      HDMI Inputs8 (1 front)9 (1 front)
      HDMI Outputs2 (simultaneous)2 (1 Main, 1 Sub/Zone2)
      8K Inputs
      USB Input1 Front (for iPod/iPhone) and 1 Rear1 Front (for iPod/iPhone) and 1 Rear
      USB DC Out Port
      Optical Inputs24 (1 front)
      Optical Outputs
      Coaxial Inputs23
      RCA Line Inputs57 (1 front)
      RCA Line Outputs
      XLR Line Inputs
      Phono Input
      Multi-Channel Input
      RCA Pre-Outs0.211.4
      XLR Pre-outs
      Composite Video Inputs5 (1 front)5 (1 front)
      Composite Video Outputs11
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs12
      Component Video Outputs11
      Ethernet
      Ethernet Switch
      PC In
      Front A/V InputsHDMI/MHL, USB, Composite VideoHDMI/MHL, USB, Composite Video, RCA Audio, Optical
      Speaker A/B
      Headphone Out6.3 mm (1/4")6.3 mm (1/4")
      Detachable Power Cord
      uport
      ZONES Onkyo TX-NR515 Onkyo TX-NR5010
      Number of Zones23
      Powered Zones 2 2 and 3
      Zone 2 OutsRCA Line OutHDMI, Composite Video, RCA Line Out
      Zone 3 OutsRCA Line Out
      Whole House Mode
      RS-232C Interface
      +12V Trigger Output2 (Zone2, Zone 3)
      Remote (IR) Input/Output1 / 1
      MISCELLANEOUS Onkyo TX-NR515 Onkyo TX-NR5010
      On-Screen Display Advanced "Home" GUI Advanced "Home" GUI
      ONKYO-RI System Control
      RIHD (Remote Interactive Over HDMI)
      Pre-Pro/Learning Remote / /
      On Screen Remote Programming
      Bi-directional Remote Setup via GUI
      Activity Based Remote
      Smart Grid-Ready
      RADIO Onkyo TX-NR515 Onkyo TX-NR5010
      Analog Tuner FM/AM with RDS FM/AM with RDS
      Presets4040
      Digital Radio
      Internet Radio vTuner vTuner
      Pandora
      Spotify
      Tidal
      Deezer
      Napster
      SiriusXM
      CONSTRUCTION Onkyo TX-NR515 Onkyo TX-NR5010
      Solid Aluminum Front
      Speaker Terminals911
      Large Speaker Terminals711
      Color-Coded Speaker Terminals
      Transparent High-Grade Speaker Terminals
      Gold plated RCA terminals
      POWER Onkyo TX-NR515 Onkyo TX-NR5010
      Power SupplyAC 230 V, 50 HzAC 220-240 V, 50/60 Hz
      Independent Power Supply4
      H.C.P.S. (High Current Power Supply) Massive High Power Transformer Massive High Power Toroidal Transformer
      Toroidal Transformer
      Power Consumption480 W1160 W
      No Sound Power65 W (230 V)/70 W (240 V)130 W
      Standby Power0.2 W0.15 W
      ECO Mode / Hybrid Standby Function
      PHYSICAL Onkyo TX-NR515 Onkyo TX-NR5010
      Dimensions (W x H x D)435 mm x 173.5 mm x 328 mm
      17-1/8" x 6-13/16" x 12-15/16"      		435 mm x 198.5 mm x 463.5 mm
      17-1/8" x 7-13/16" x 18-1/4"
      Weight9.2 kg (20.3 lbs)25.0 kg (55.1 lbs)
      SPECIFICATIONS Onkyo TX-NR515 Onkyo TX-NR5010
      Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)80 W (0.7% THD)145 W (0.05% THD)
      Power Output (6 Ω, 1 kHz, 2 channel driven)100 W (0.7% THD)
      Power Output (6 Ω, 1 kHz, 2 channel driven, FTC)125 W (0.1% THD)175 W (0.1% THD)
      Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)160 W280 W
      Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)130 W (1% THD)220 W (1% THD)
      Dynamic Power per Channel (3 Ω, Front)180 W400 W
      Dynamic Power per Channel (4 Ω, Front)160 W300 W
      Dynamic Power per Channel (8 Ω, Front)100 W180 W
      THD0.08% (20 Hz - 20 kHz, half power)0.05% (20 Hz - 20 kHz, half power)
      Damping Factor60 (Front, 1 kHz, 8 Ω)60 (Front, 1 kHz, 8 Ω)
      Input Sensitivity and Impedance (Line)200 mV/47 kΩ (Line)200 mV/47 kΩ (Line)
      Input Sensitivity and Impedance (Phono MM)2.5 mV/47 kΩ
      Rated Preout Level and Impedance1 V/470 Ω
      Rated Lineout Level and Impedance200 mV/2.2 kΩ
      Maximum Preout Level and Impedance5.5 V/470 Ω
      Maximum Lineout Level and Impedance2 V/2.2 kΩ
      Phono Overload70 mV (MM 1 kHz 0.5% Direct)
      S/N Ratio (Line, IHF-A)100 dB110 dB
      S/N Ratio (Phono MM, IHF-A)80 dB
      Frequency Response (Analog In)5 Hz - 100 kHz/+1 dB, -3 dB (DSP bypass)5 Hz - 100 kHz/+1 dB, -3 dB (Direct Mode)
      DSD Sampling Rates via HDMI2.8 MHz2.8 MHz
      DSD Sampling Rates via USB2.8 MHz
      Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Component Y)
      0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
      1 Vp-p/75 Ω (Composite)      		1 Vp-p/75 Ω (Component Y)
      0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
      1 Vp-p/75 Ω (Composite)
      Video Frequency Response5 Hz - 100 MHz/+0 dB, -3 dB (Component)5 Hz - 100 MHz/+0 dB, -3 dB (Component)
      Ethernet Standard100BASE-TX100BASE-TX
      FM Frequency87.5 MHz - 108.0 MHz87.5 MHz - 108.0 MHz
      AM Frequency522/530 kHz - 1611/1710 kHz522/530 kHz - 1611/1710 kHz
      Warranty2 Years2 Years

      * - 480i/576i and 480p/576p only
      ** - 480i/576i only
      *** - no 1080p/24 upconversion
      **** - 1080p signal is not converted

      Amazon Affiliate Disclosure
      ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
