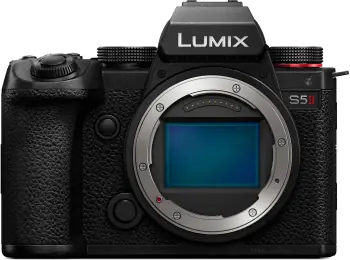

Panasonic Lumix DC-S5 II

    84
    Image cannot be found

    Highlights

    • 24.2 MP Full Frame CMOS Sensor
    • No Optical Low-pass Filter
    • 100 - 51,200 Native ISO
    • 779 Focus Points
    • 5-Axis Image Stabilization
    • 3.0" 1,840k dot Fully Articulated Screen
    • 3,680k dot Electronic (OLED) Viewfinder
    • 9.0 fps Mechanical and 30.0 fps Electronic Continuous Shooting
    • 5952 x 3968 Video Shooting
    • Panasonic V-Gamut, V-Log
    • Built-In Wi-Fi
    • Wheather Sealed Body
    Image cannot be found
    Image cannot be found

    Disclosure: We earn money from the affiliate links to products associated with content in this article.

    Specifications

    General
    BrandPanasonic
    ModelLumix DC-S5 II
    Predecessor ModelPanasonic Lumix DC-S5
    MSRP$1999.99
    Camera TypeInterchangeable Lens
    Body TypeMirrorless
    Video Capture
    Sensor
    Sensor TypeCMOS
    Sensor SizeFull Frame
    Sensor Dimensions35.6 x 23.8 mm
    Total Pixels25.28 Megapixel
    Effective Pixels24.2 Megapixel
    Low Pass Filter
    Native ISO Range100 - 51,200
    Boosted ISO Range50 - 204,800
    ProcessorVenus Engine
    Max Image Resolution6000 x 4000
    Image Aspect Ratios1:1, 2:1, 3:2, 4:3, 16:9, 65:24
    Image File FormatJPEG, RAW
    Bit Depth14-Bit
    Color SpacesRGB, Adobe RGB
    Timelapse Recording
    White Balance2500 to 10,000K
    Presets: AWB, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4
    WB Bracketing3 images in blue/amber axis or in magenta/green axis, color temperature setting
    Focus
    Autofocus ModesPhase Detect
    Lens ServoContinuous-Servo AF, Manual Focus, Single-Servo AF
    AF Detection Range-6 to +18 EV
    Number of Focus Points779
    Touch-to-Focus
    Live View Autofocus
    Animal Eye Detection
    Vehicle Tracking Mode
    Insect Tracking Mode
    Contrast Detection for Autofocus
    Phase Detection for Autofocus
    Optics
    Lens MountLeica L
    Crop Factor1x
    Image Stabilization5-Axis Sensor Shift
    Image Stabilization Compensation5.5 stops
    Digital Image Stabilization
    Screen
    Screen TypeFully Articulated
    Screen TechnologyTFT LCD with static touch control
    Touch Screen
    Selfie & Vlogger Friendly LCD Screen
    Screen Size3.0"
    Screen Resolution1,840k dot
    Top LCD Screen
    Live View
    Live Composition
    Viewfinder
    ViewfinderElectronic (OLED)
    Viewfinder Coverage100%
    Viewfinder Magnification0.78x
    Viewfinder Magnification (35mm equivalent)0.78x
    Viewfinder Resolution3,680k dot
    Viewfinder Eyepoint21 mm
    Diopter Adjustment-4 to +2
    Display speed120fps / 60fps
    Shutter
    Shutter TypeElectronic, Mechanical Focal Plane
    Min Shutter Speed60 sec
    Max Shutter Speed (Mechanical or 1st Curtain)1/8000 sec
    Max Shutter Speed (Electronic)1/8000 sec
    Max Continuous Shooting (Mechanical or 1st Curtain)9.0 fps
    Max Continuous Shooting (Electronic)30.0 fps
    Max Continuous Shooting30.0 fps
    Continuous Shooting Resolution/fps/bufferMechanical Shutter
    Up to 9 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
    Up to 5 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
    Up to 2 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
    Electronic Shutter
    Up to 30 fps for up to 200 Frames (Raw) / 200 Frames (JPEG)
    Up to 9 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
    Up to 5 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
    Up to 2 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
    Flash
    Built-in Flash
    Flash ModesAuto*
    Auto/Red-eye Reduction*
    Forced On
    Forced On/Red-eye Reduction
    Slow Sync.
    Slow Sync./Red-eye Reduction
    Forced Off *For iA only.
    Max Flash Sync Speed1/250 sec
    Flash Compensation-3 to +3 EV (1/3 EV Steps)
    External Flash Connectivity
    External Flash SystemTTL
    External Flash ConnectionHot Shoe
    Exposure
    Exposure Metering ModesMulti
    Center-weighted
    Highlight-weighted
    Spot
    Exposure ModesAperture Priority, Auto, Manual, Program, Shutter Priority
    Metering Range0 to +18 EV
    Exposure Compensation±5 EV (1/3 EV increments)
    Exposure Bracketing ±3 EV (3, 5, 7 shots at 1/3 EV, 2/3 EV, 1 EV increments)
    Exposure LockSet the Fn button in custom menu to AE lock
    Video
    Internal Recording ModesH.264/H.265/MOV/MPEG-4 AVC 4:2:2/4:2:0 8/10-Bit
    5952 x 3968 @ 23.98/24/25/29.97 fps [200 Mbps]
    5952 x 3136 @ 23.98/24/25/29.97 fps [200 Mbps]
    5888 x 3312 @ 23.98/24/25/29.97 fps [200 Mbps]
    4096 x 2160 @ 23.98/24/25/29.97/47.95/48.00/50/59.94 fps [150 to 200 Mbps]
    3840 x 2160 @ 23.98/24/25/29.97/47.95/48.00/50/59.94 fps [150 to 200 Mbps]
    Full HD: 1920 x 1080 @ 23.98/24/25/29.97/47.95/48.00/50/59.94/100 fps [20 to 150 Mbps]
    Interval Recording
    Video FormatsMPEG-4, H.264, H.265
    Max Video Resolution5952 x 3968
    10-bit 4:2:2 Color
    External Recording Modes12-Bit via HDMI
    5888 x 3312 @ 23.98/25/29.97 fps
    No crop on 4K Videos
    Webcam Functionality
    Gamma CurvePanasonic V-Gamut, V-Log
    Unlimited Video Recording
    Recording Limitunlimited
    Terminals
    Audio I/O1 x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output
    1 x 1/8" / 3.5 mm TRRS Headphone/Mic Microphone Input
    Power I/O1 x USB-C Input/Output
    Other I/O1 x USB-C Data Input/Output (Shared with Power Input)
    USB SpeedUSB 3.2 Gen 2x1 (10 GBit/sec)
    HDMI Output Full Size
    SpeakerMono
    Built-in MicrophoneStereo
    Microphone Input
    Headphone Output
    Flash Sync Port
    Connectivity
    Built-in GPS
    Built-In Wi-Fi
    Wi-Fi VersionWi-Fi 5, 802.11ac/b/g/n, 2.4/5 GHz
    Built-In Bluetooth
    Mobile App Compatible: Android & iOS
    App Name: Lumix Sync
    Functionality: Access Stored Files, Firmware Update, Remote Control
    *As of January, 2023: Check with manufacturer for the most up-to-date compatibility
    Remote Control 2.5mm
    Environmental
    Environmental Sealing
    Operating Temperature32 to 104°F / 0 to 40°C
    Operating Humidity10 to 80%
    Physical
    Dimensions134 x 102 x 90 mm (5.29 x 4.03 x 3.55")
    Weight (inc. batteries)740 g (1.63 lb / 26.10 oz)
    Box Dimensions (LxWxH)13.4 x 7.4 x 6.6"
    Package Weight2.65 lb
    Power and Storage
    Battery PackDMW-BLJ31
    Battery Life370 shots
    USB Charging
    Internal Storage
    External StorageDual Slot: SD/SDHC/SDXC (UHS-II)
    Other
    Self Timer 2 or 10 secs, 10 secs w/3 images
    Orientation Sensor
    Tripod Mounting Thread1 x 1/4"-20 Female (Bottom)
    Accessory Mount1 x Hot Shoe Mount on Camera Body
    Material of ConstructionMagnesium Alloy
    Electronic Level Gauge
    Sensor Cleaning/Dust Reduction SystemImage sensor shift type
